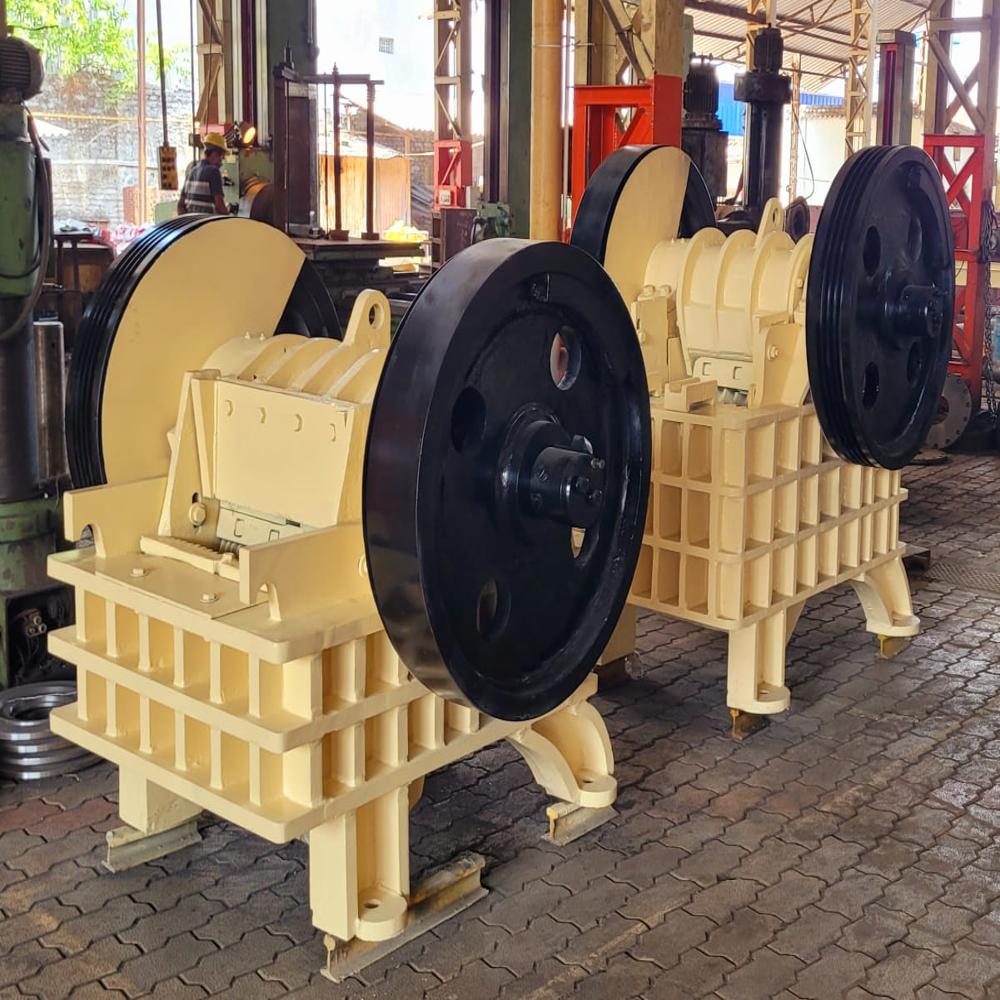

2406 Mini Stone Crusher

Get a Price/Quote

MOQ : 1 Piece

2406 Mini Stone Crusher Specification

Spindle Speed
1440 rpm

Frequency
50 Hz

Dimension (L*W*H)
1050 x 750 x 1350 mm

Condition
New

Motor Power
3 HP

Machine Type
Stone Crusher

Features
Compact Design, Durable Construction, Low Maintenance

Noise Level
Low

Product Type
Mini Stone Crusher

Material
Mild Steel

Computerized
No

Automatic Grade
Semi-Automatic

Control System
Manual

Voltage
220-240 V

Power
3 HP

Power Source
Electric

Weight (kg)
350 kg

Capacity
1-1.5 TPH

Color
Yellow & Black

Usage & Applications
Mining, Construction, Stone Crushing

Discharge Opening
10-25 mm

Feeding Size
Up to 100 mm

Mobility
Portable / Stationary both available

Frame Type
Heavy Duty

Lubrication
Grease/Oil Lubrication System

Safety Features
Overload Protection

2406 Mini Stone Crusher Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About 2406 Mini Stone Crusher

CPC 2406 MTH Single Toggle Stone Crusher are High Performance Machines built for Heavy and Continuous Duty

Features

High production

Minimum breakdown

Quality bearings

Light Weight Jaw Plates

Heavily Ribbed Body & pitman

High Quality Bearings

Heat Treated Body & pitman

Hardened Alloy Steel Shaft

Compact and Durable Design

Engineered with a heavy-duty mild steel frame, the 2406 Mini Stone Crusher delivers robust performance and long-lasting durability. Its compact dimensions make it suitable for sites with limited space, while mobile and stationary variants allow flexible installation according to operational requirements.

Efficient Crushing Performance

With the ability to process various materials such as granite, limestone, and concrete, the crusher supports feeding sizes up to 100 mm. Its discharge opening is conveniently adjustable from 10 to 25 mm, ensuring optimal output size tailored to your specific needs with a capacity of 1-1.5 TPH.

Safe and User-Friendly Operation

Integrated overload protection and a reliable grease/oil lubrication system enhance equipment safety and reduce wear. The semi-automatic manual control system ensures ease of use while maintaining operational security and minimizing noise for a comfortable working environment.

FAQ's of 2406 Mini Stone Crusher:

Q: How can the crushing size be adjusted on the 2406 Mini Stone Crusher?

A: The 2406 Mini Stone Crusher features a manual adjustment mechanism, allowing operators to set the discharge opening between 10 mm and 25 mm. This flexibility lets users tailor output sizes to specific project requirements.

Q: What materials can be processed using this stone crusher?

A: This model is suitable for a wide range of materials including granite, stone, limestone, and concrete, making it ideal for diverse applications in mining and construction.

Q: When is it recommended to use portable versus stationary installation?

A: Portable models are ideal for operations requiring frequent relocation, such as on-site construction projects. Stationary models are best suited for fixed installations where the crusher will remain in one location for extended periods.

Q: Where can the 2406 Mini Stone Crusher be effectively utilized?

A: It is highly effective in mining sites, construction zones, stone quarries, and demolition projects where robust and compact stone crushing equipment is essential.

Q: What safety features are included in this stone crusher?

A: The machine is equipped with overload protection to prevent damage during excessive load conditions, and a grease/oil lubrication system to ensure consistent, safe operation while extending component life.

Q: How is the lubrication maintained in this equipment?

A: A grease or oil lubrication system is provided, requiring periodic checks and refilling to maintain optimal machine performance and reduce wear on moving parts.

Q: What are the key benefits of choosing this stone crusher?

A: The 2406 Mini Stone Crusher stands out due to its compact design, durable construction, low maintenance needs, high efficiency, low noise levels, and reliable safety features, making it a cost-effective choice for small and medium-scale stone crushing tasks.
