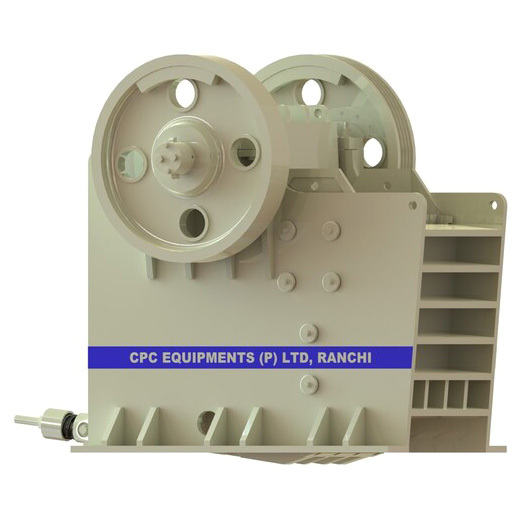

3222 Rhino Mk II Primary Jaw Crusher

Price 1000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

3222 Rhino Mk II Primary Jaw Crusher Specification

Rotation
Standard (Anti-clockwise)

Model
3222 Rhino Mk II

Product Type
Primary Jaw Crusher

General Use
Crushing stones and minerals in mining, quarrying and aggregate production

Type
Stone Crusher

Capacity
150-300 TPH

Weight (kg)
Approx. 37,000 kg

Computerized
No

Floor Space
Approx. 5400 mm x 3200 mm

Spindle Speed
320 RPM

Power
110 kW (approx)

Voltage
380-440V, 50 Hz

Dimension (L*W*H)
5400 mm x 3200 mm x 3400 mm

Feature
High crushing ratio, robust construction, low maintenance

Color
Red / Grey

Drive Type
Belt Driven

Lubrication System
Grease/Oil Splash

Discharge Size Adjustment
100 - 200 mm

Application Area
Mining, Construction, Aggregate production

Feed Opening Size
800 mm x 550 mm

Flywheel Diameter
1600 mm

Number of Toggle
Single

Jaw Plate Material
Manganese Steel

Mounting
Skid/Fixed

Max Feed Size
700 mm

3222 Rhino Mk II Primary Jaw Crusher Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About 3222 Rhino Mk II Primary Jaw Crusher

CPC 3222 RHINO MK II Single Toggle Stone Crusher have minimum wear & tear of Toggle Plate, Hook Rod, Toggle Seat (Liner) and Spring due to incorporation of advanced crushing technology.

Features:

1 Year Guarantee on All Parts ( Except Jaw PI , Side PI , Gutka & Gutka Bolt)

Extra heavy alloy steel shaft

Higer Production as Compared to Mark I.

Minimum Maintenance Cost.

Forged & Hardened Alloy Steel Shaft.

Heat Treated Body And Pitman.

High Quality Bearings.

Keyless Flywheel.

Hydralic Jaw Adujtment in Primary Crushers.

Prompt After Sales Service.

Robust Construction and Durability

Built with a heavy-duty steel body, the 3222 Rhino Mk II Primary Jaw Crusher offers strength and longevity even in harsh environments. Its manganese steel jaw plates resist wear, while the grease/oil splash lubrication minimizes maintenance needs. The sturdy construction ensures stable operations during continuous use in mining or construction sites.

High Crushing Capacity and Flexibility

Delivering a capacity of 150-300 TPH, this jaw crusher is equipped to process high volumes efficiently. The discharge size adjustment (100-200 mm) allows customization to specific aggregate requirements, while the 1600 mm diameter flywheel and belt-driven design optimize energy use for reliable, cost-effective performance.

Versatile Application Areas

Designed for primary crushing in mining, quarrying, and aggregate settings, the 3222 Rhino Mk II adapts seamlessly to different operational needs. Its mounting versatility (skid or fixed) and semi-automatic controls ensure it fits a wide range of project demands, maximizing utility across diverse work environments.

FAQ's of Stone Crusher 3222 Rhino Mk Ii Primary Jaw Crusher:

Q: How does the 3222 Rhino Mk II Primary Jaw Crusher operate?

A: This jaw crusher uses a single-toggle mechanism to crush large stones and minerals, operating through a standard anti-clockwise rotation at a spindle speed of 320 RPM. The belt-driven system ensures smooth transfer of power, while grease or oil splash lubrication maintains efficient functioning.

Q: What are the primary applications of this jaw crusher?

A: The 3222 Rhino Mk II is ideal for crushing stones and minerals in mining operations, construction projects, and aggregate production. Its robust build and high throughput make it suitable for continuous, large-scale material processing.

Q: When should you adjust the discharge size?

A: Discharge size adjustment (between 100 and 200 mm) should be performed based on the required aggregate size for your specific application or production goals, which can be modified before or during operation to achieve optimal output.

Q: Where can this jaw crusher be installed?

A: This crusher can be mounted either on a skid or fixed foundation, allowing flexible installation at mining sites, quarries, or construction yards according to the project's infrastructure and mobility requirements.

Q: What processes does the jaw crusher improve on site?

A: The crusher streamlines primary crushing processes, enabling efficient size reduction and preparation of raw material for further handling or secondary crushing. Its high crushing ratio and robust construction enhance productivity and safety on site.

Q: How does the manganese steel jaw plate benefit the crusher's performance?

A: Manganese steel jaw plates offer superior wear resistance, ensuring longer operational life, reduced maintenance intervals, and consistent crushing efficiency even under demanding conditions.

Q: What advantages does the semi-automatic operation provide?

A: Semi-automatic controls improve ease of use and allow for flexible adjustments in operation, contributing to safer handling, reduced manual labor, and more reliable performance in various industrial environments.
